Wiring Diagrams (Last updated April 20, 2017)


Wiring with TC-Mark-II

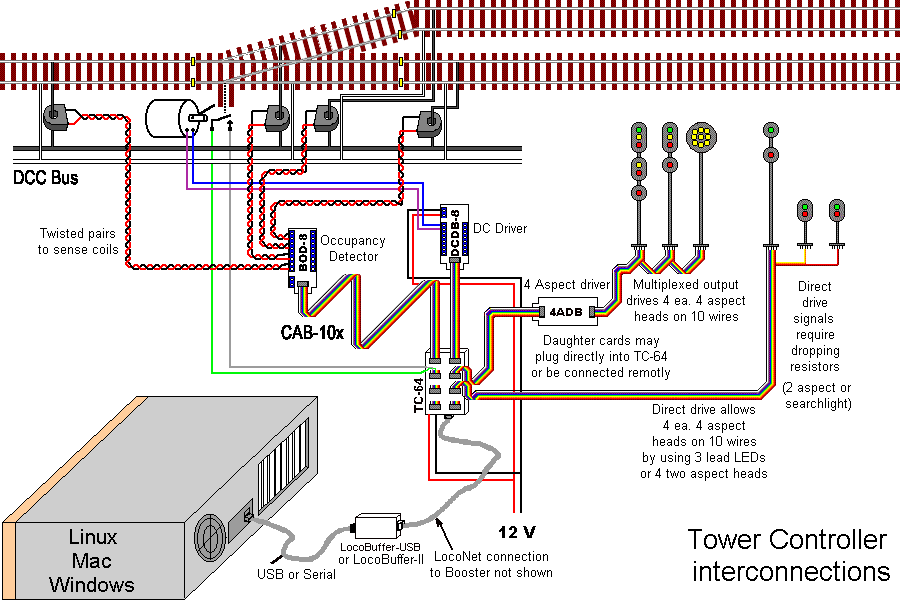

TC Connections
General layout wiring using a Tower Controller.

Wiring with LNCP

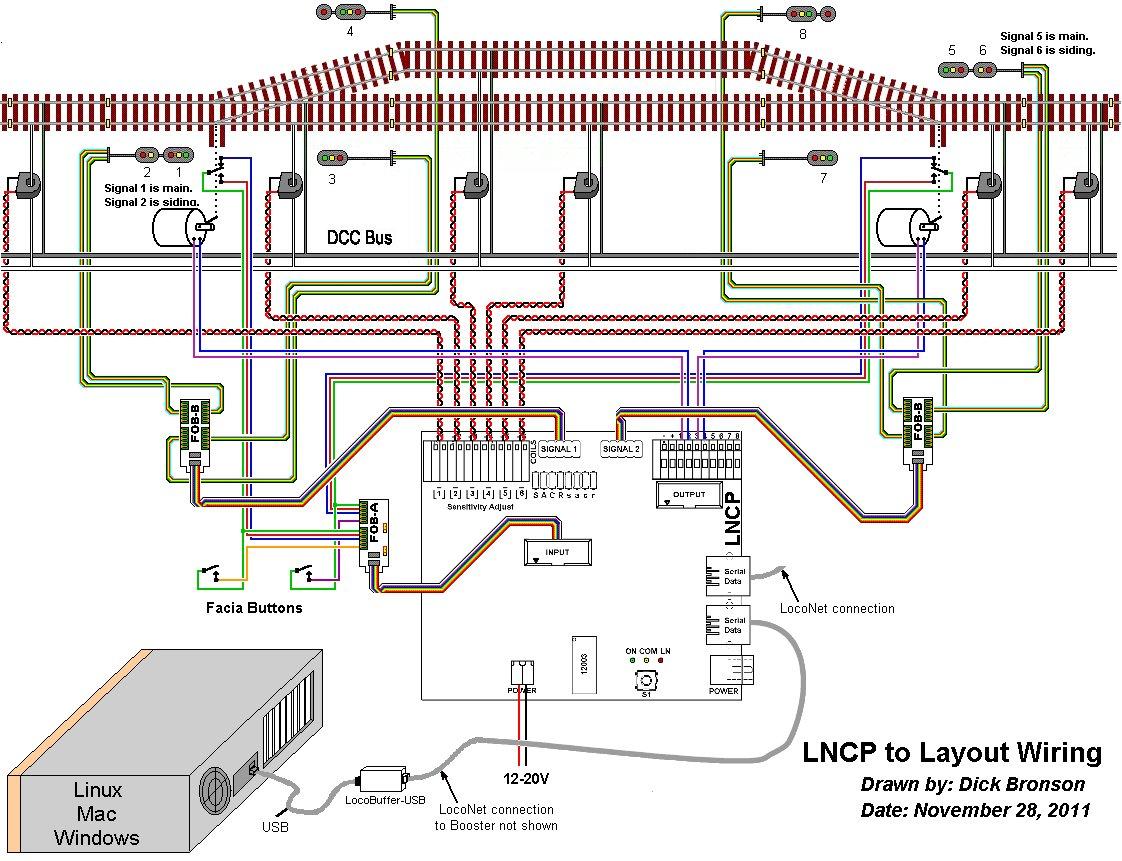

LNCP Wiring
 General layout wiring using a LNCP (Loconet Control Point.
Wiring with SSB
SSB Wiring
General layout wiring using the SSB WorkMan style boards.
WatchMan Connections

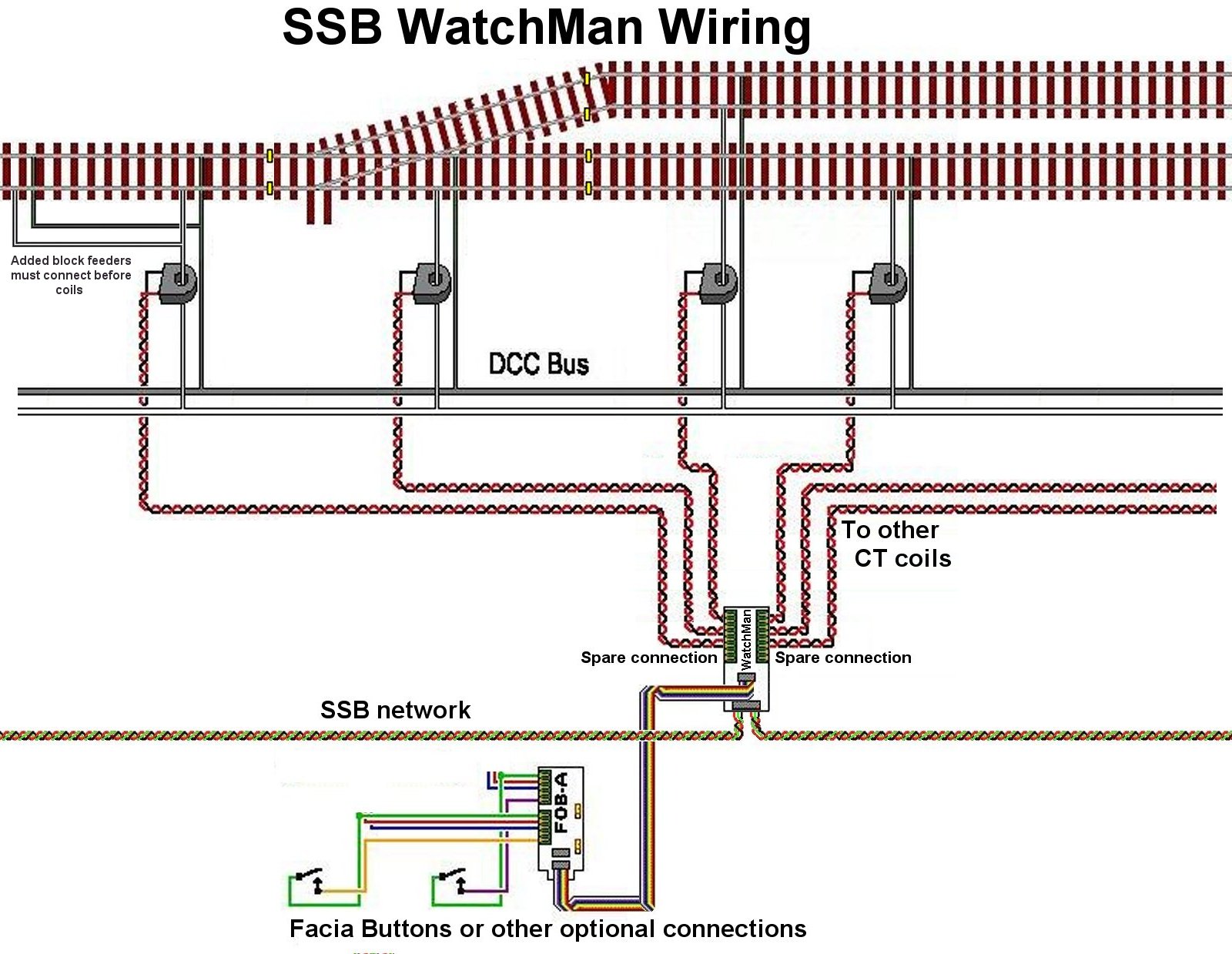

WatchMan wiring
CT coil and other connections to a WatchMan board.

Wiring with LCC
Wireing with LCC
LCC logo     Wiring for LCC control
